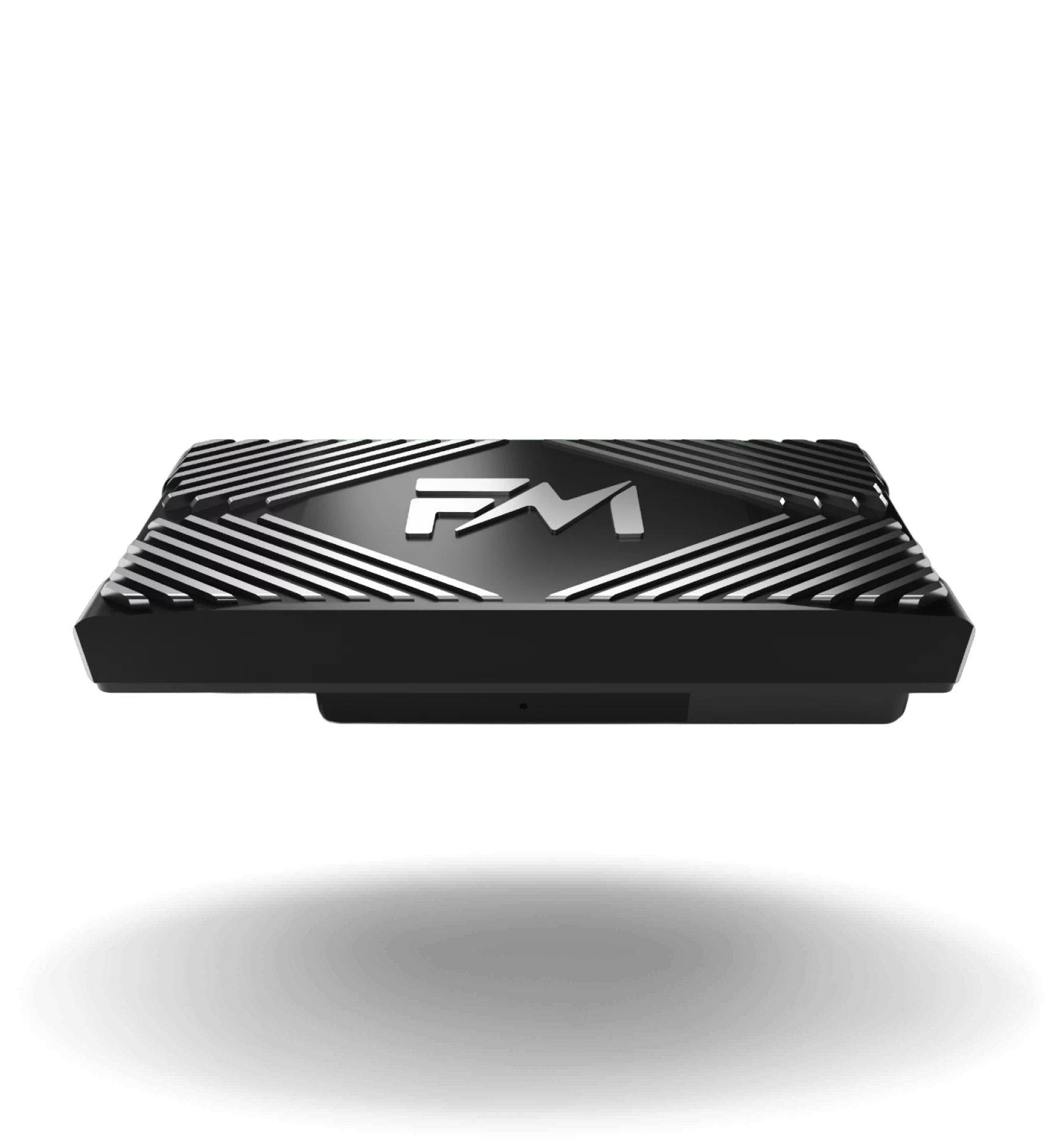

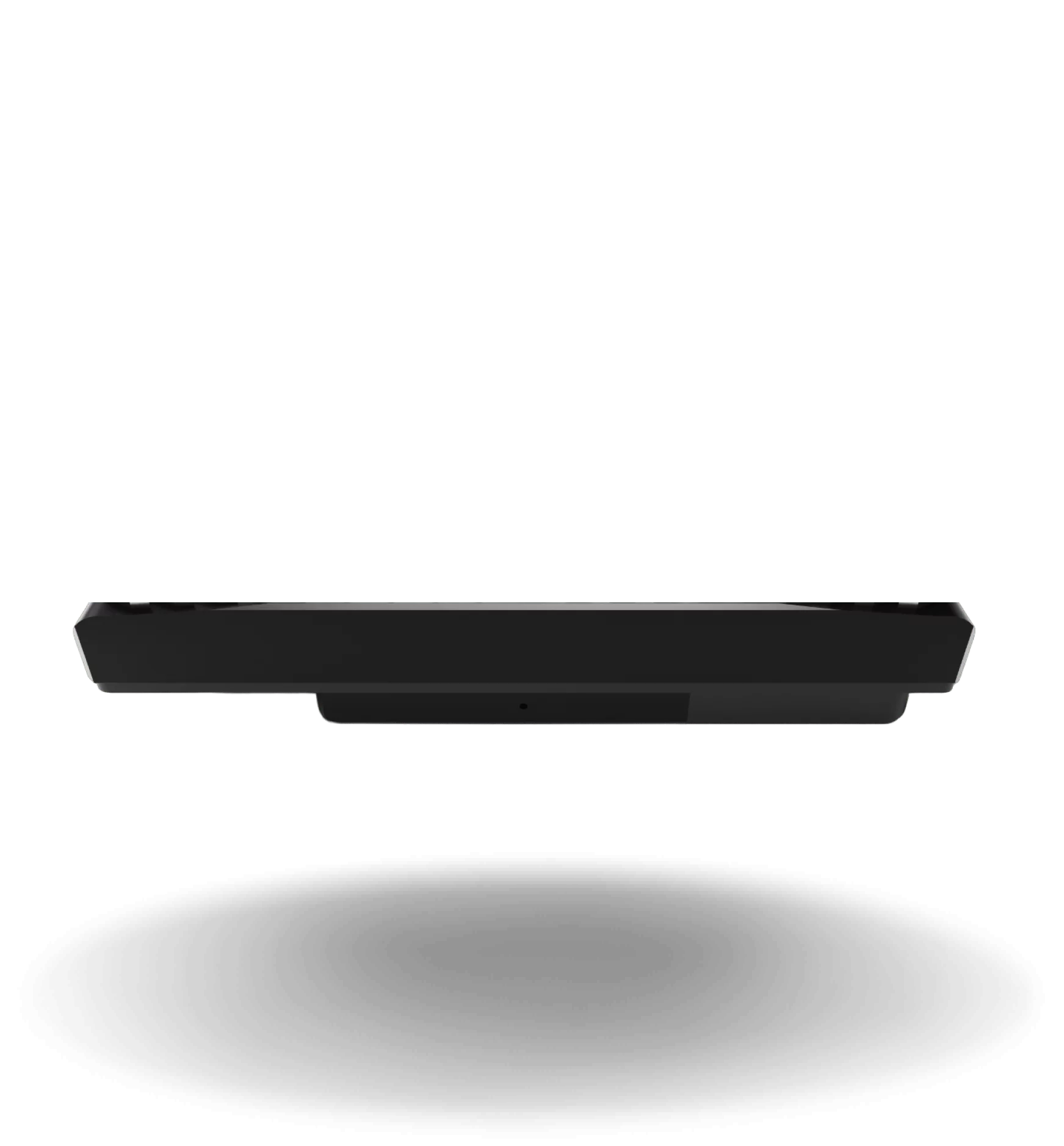

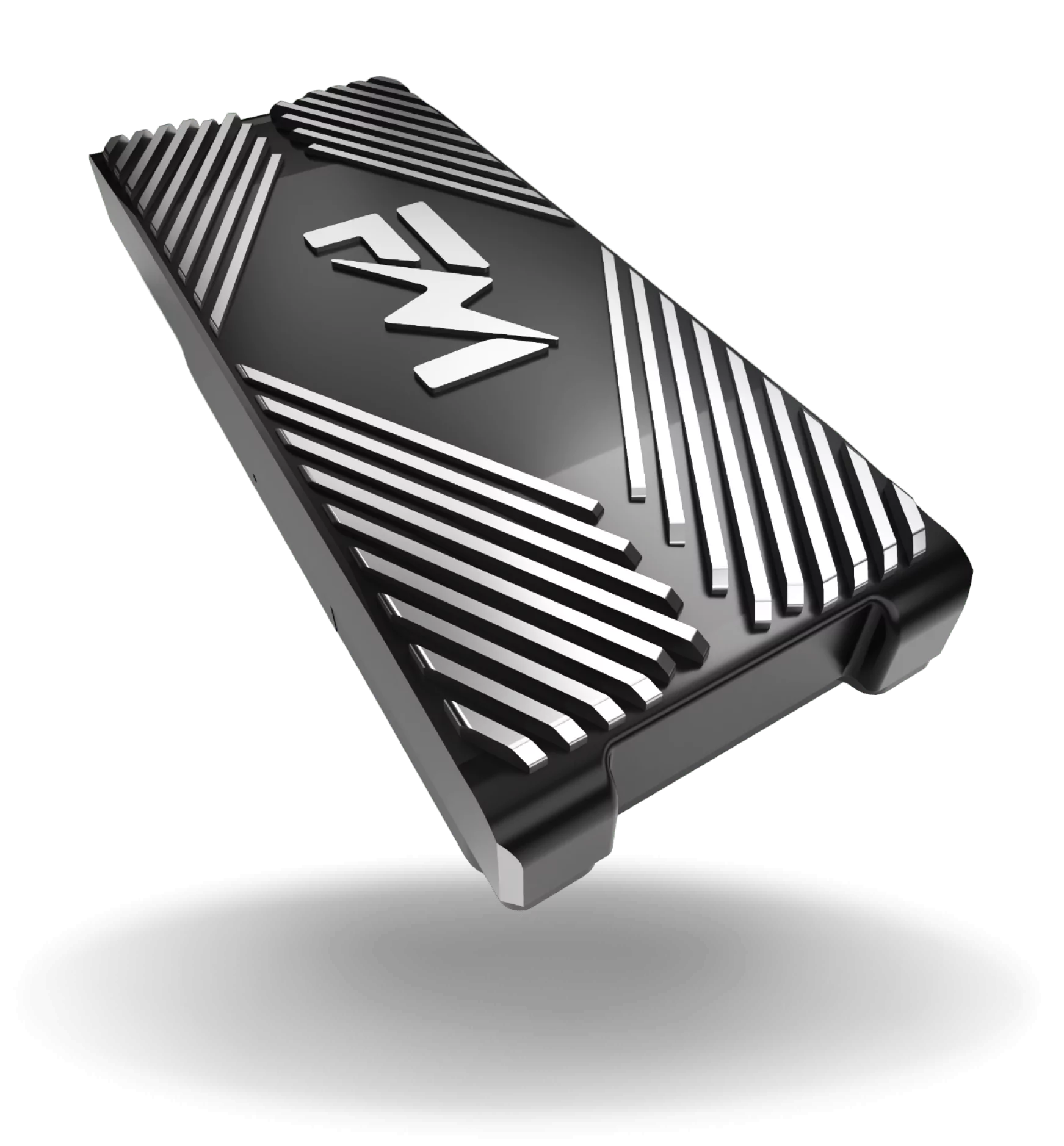

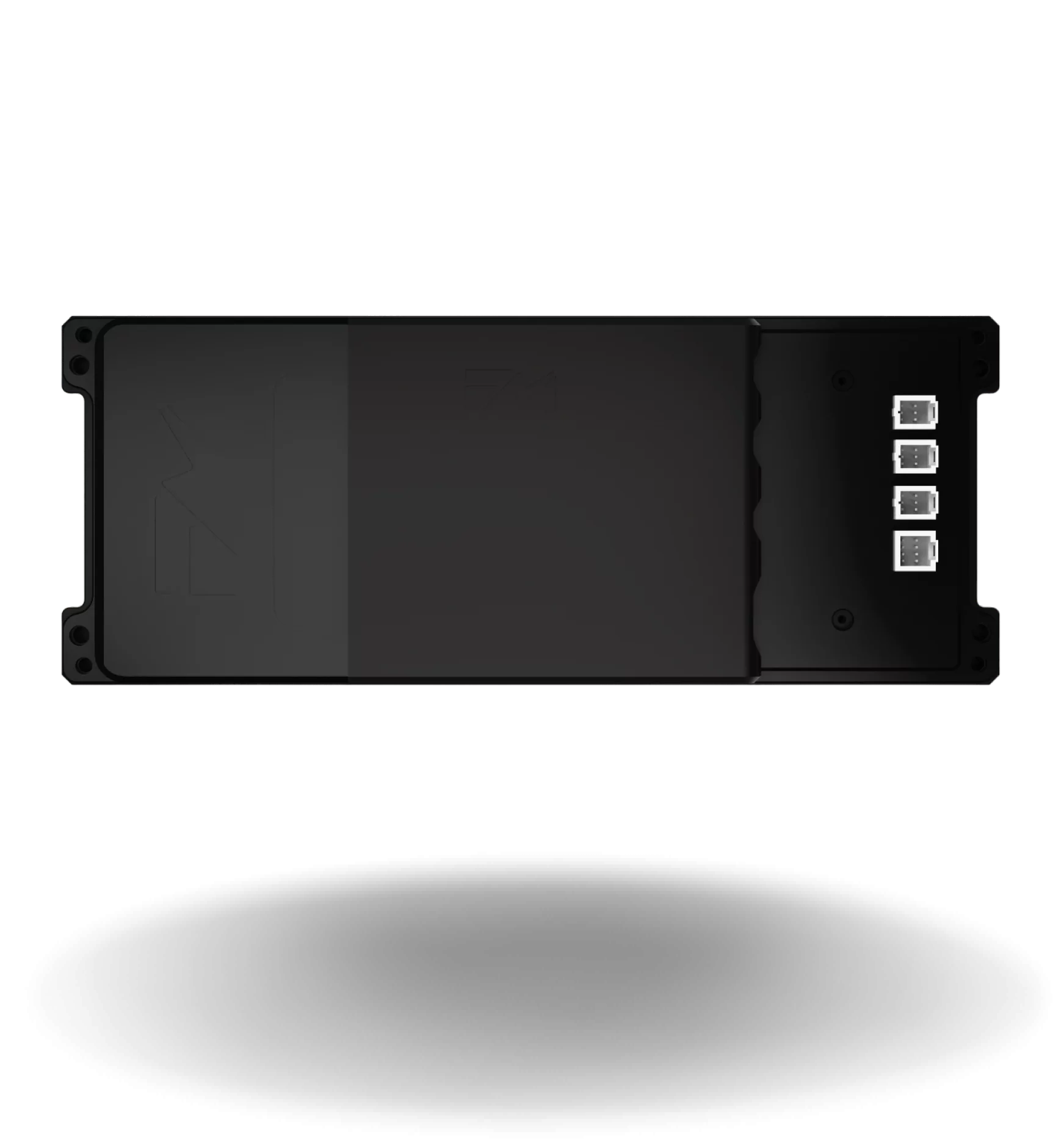

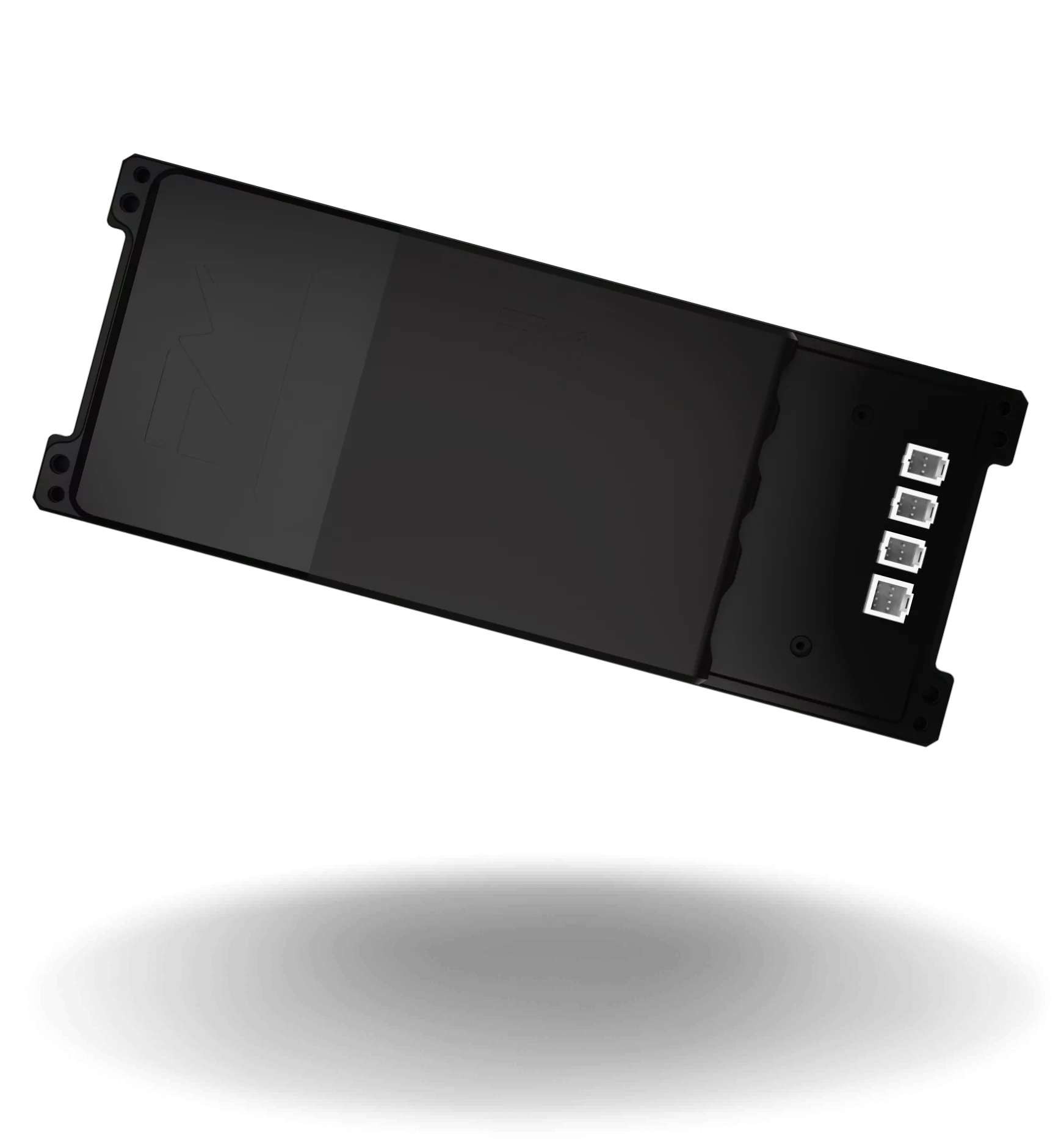

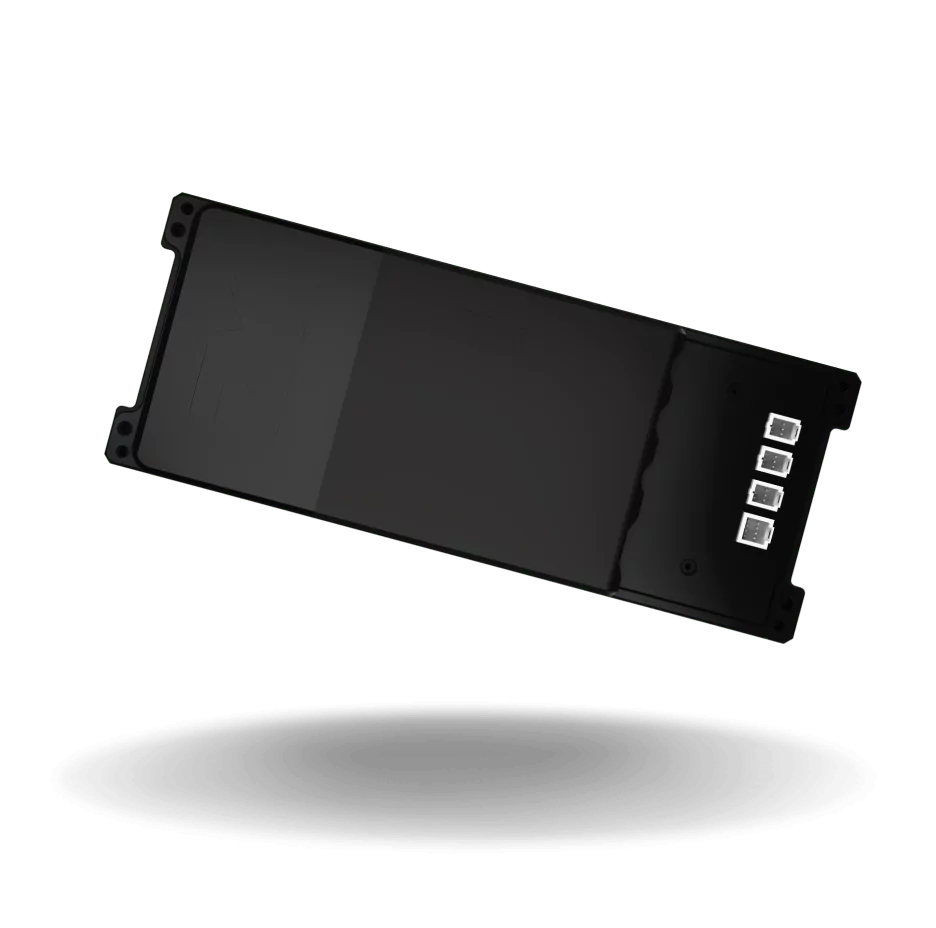

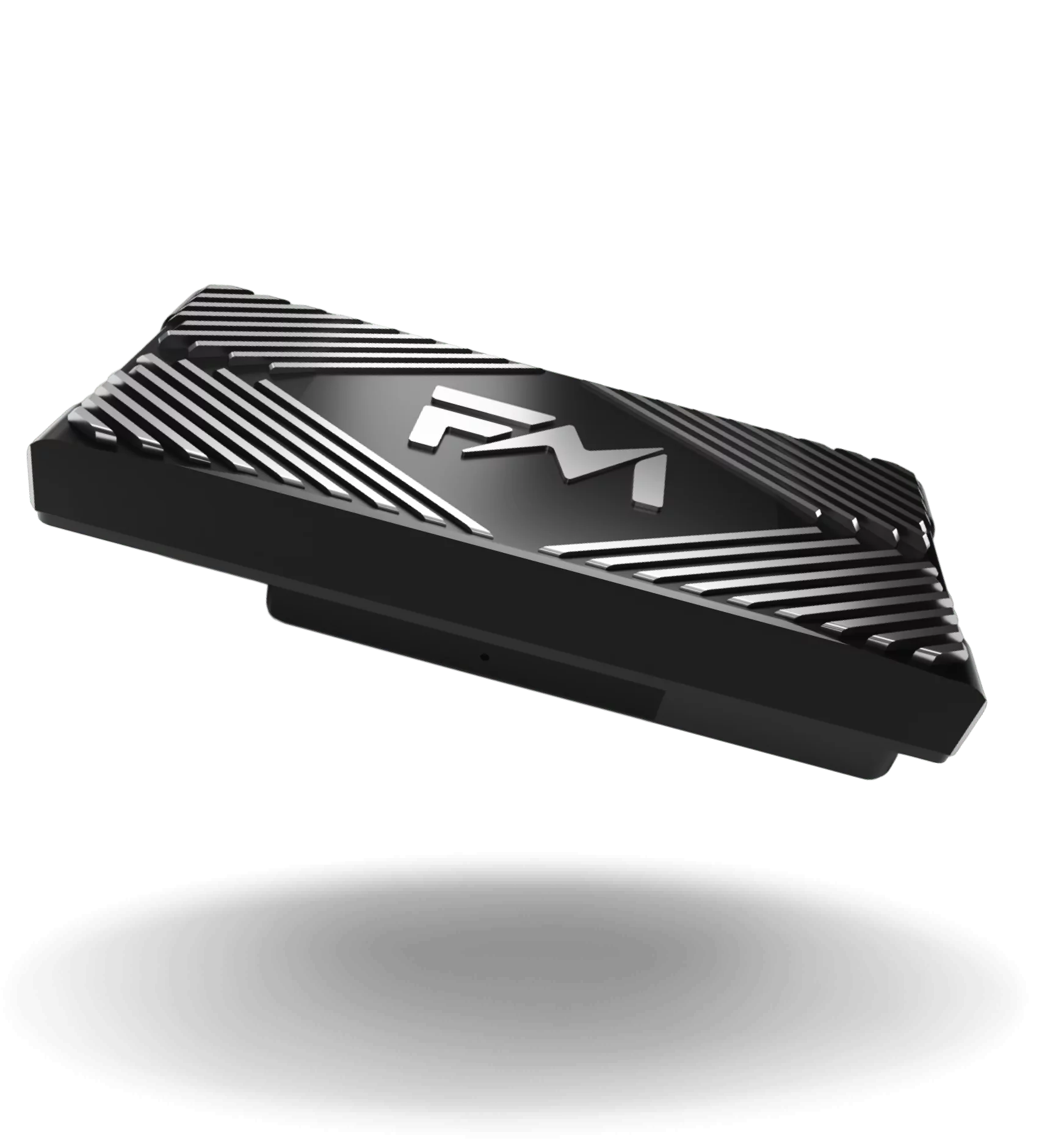

Nano Elite X5K

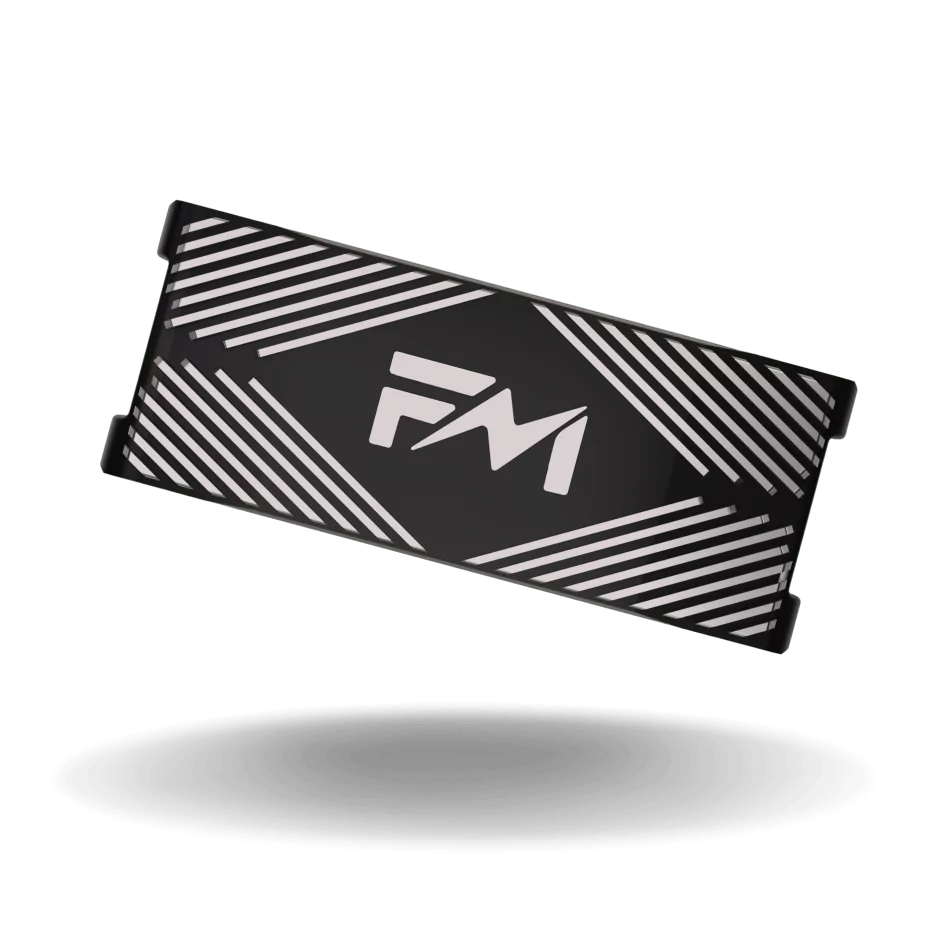

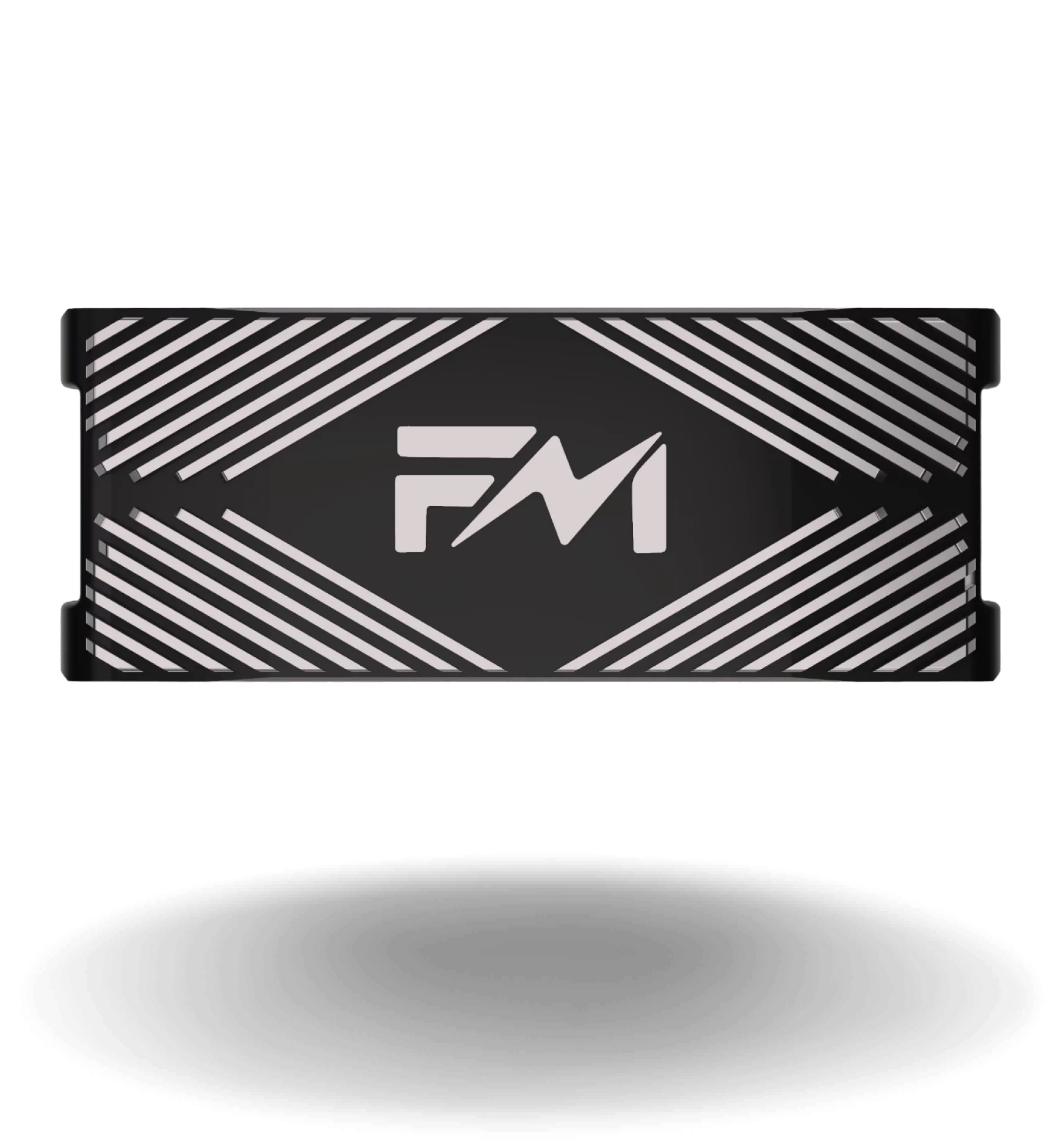

black contoller Nano Elite X5K
Nano Elite X5K controller for escooter
Nano Elite X5K controller for escooters
Nano Elite X5K controllers
Nano Elite X5K
Nano Elite X5K controller
Nano Elite X5K
Nano Elite X5K for hyper scooters

Nano Elite X5K

SPECIFICATIONS

FEATURES

ADDITIONAL

Phase current, max 150A
PWM frequency 8–20 kHz
Maximum Controller output frequency 500 Hz
Electrical isolation to heatsink 500 VAC
Storage ambient temperature -40°C to 75°C
Operating ambient temperature -20°C to 50°C
Thermal cutback Controller linearly reduces maximum current limit with an internal heatsink temperature from 85°C to 95°C, complete cutoff occurs above 95°C
Package environmental rating IP67 (excluding electrical connections)
Speed regulation (range) +/- 5% at top speed
Minimum motor phase to phase inductance 20 μH
Motor control scheme Sinusoidal field oriented (FOC)
Motors supported PMAC and BLDC
Input Power 18V to 85V

Enhanced Performance

Can be attached to additional heat sinks
to significantly increase performance.

Customizable Options

Configurable throttle, brake cut-off,
and regeneration options.

PWM Drive

Ensures low ripple current and silent
motor operation.

Battery Management

Compatible with analog voltage models or BMS communication-based battery management systems

Field Oriented Control

Enhances efficiency and ensures
tsmooth motor operation.

Commutation Methods

Supports sensorless or Hall commutation with automatic switching.

Communication Options

CANOpen.

Comprehensive Fault Protection:

  • Bus over and under voltage protection
  • Motor overcurrent protection
  • Motor and controller over-temperature protection
  • MOSFET bridge self-tests
  • Battery SOC foldba

Sensor Compatibility

Supports multiple sensor configurations.

Speed Inputs

Single pulse and quadrature pedal
tor wheel speed inputs.

performance

Operate over a nominal battery voltage range.

Included in Controller Package:

  • 3pcs Screws for M5 Terminals
  • 4pcs Screws for Controller Assembly
  • 3pcs Wire JWPF Connectors (6-Pin)
  • 1pc Wire JWPF Connector (8-Pin)
  • 1pc Adaptor
  • 1pc Height Adapter for Controller
  • 1pc Cover Cap for Motor Terminals

Communication Protocol

PROTOCOL CONFIGURATION
CANOpen Standard
CANOpen with BLE Optional
TTL-232 with RS-485 Optional
TTL-232 with TTL-232 Optional
TTL-232 with BLE Optional
